SPS ULTRA 600

SPS ULTRA 600

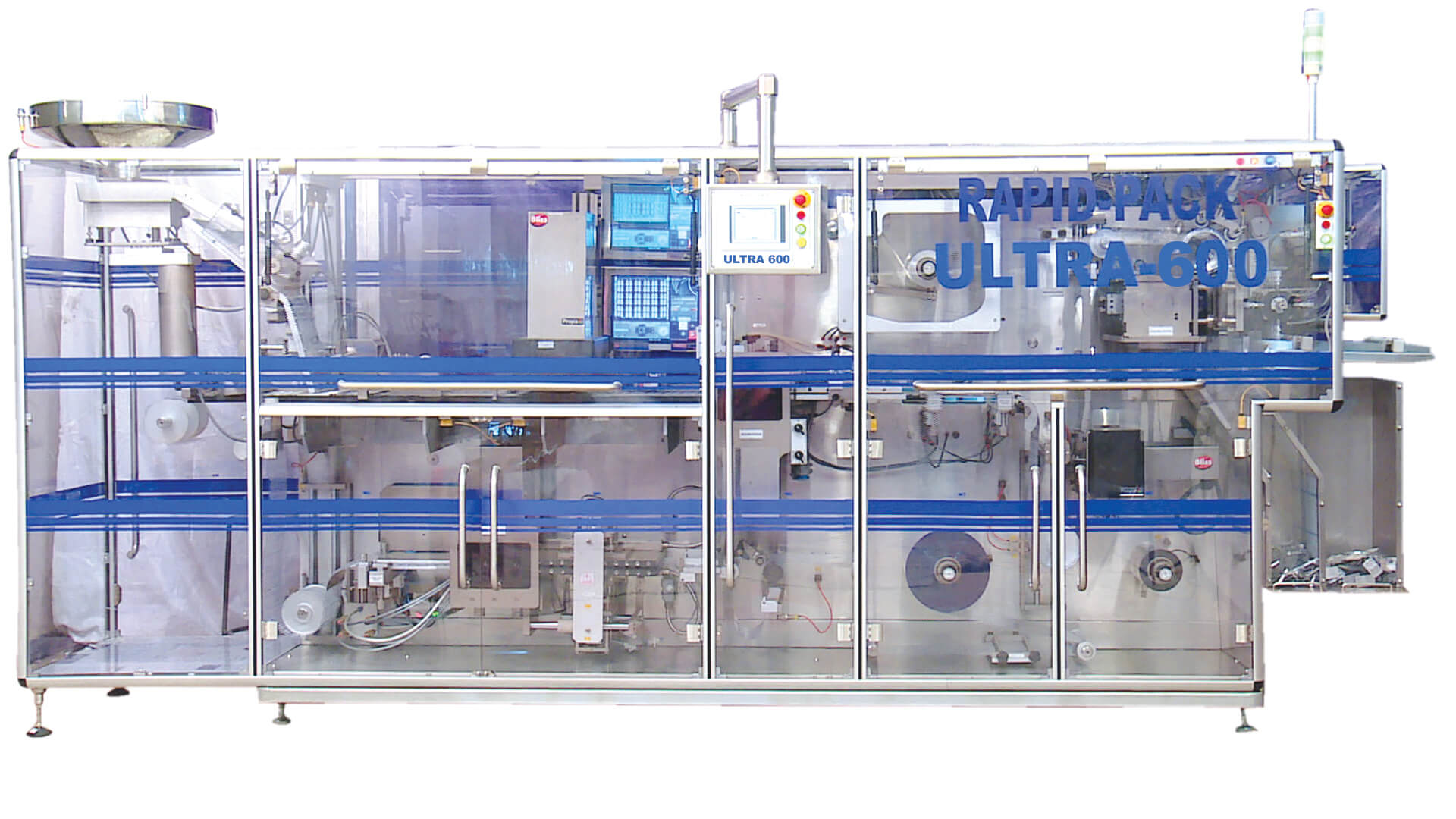

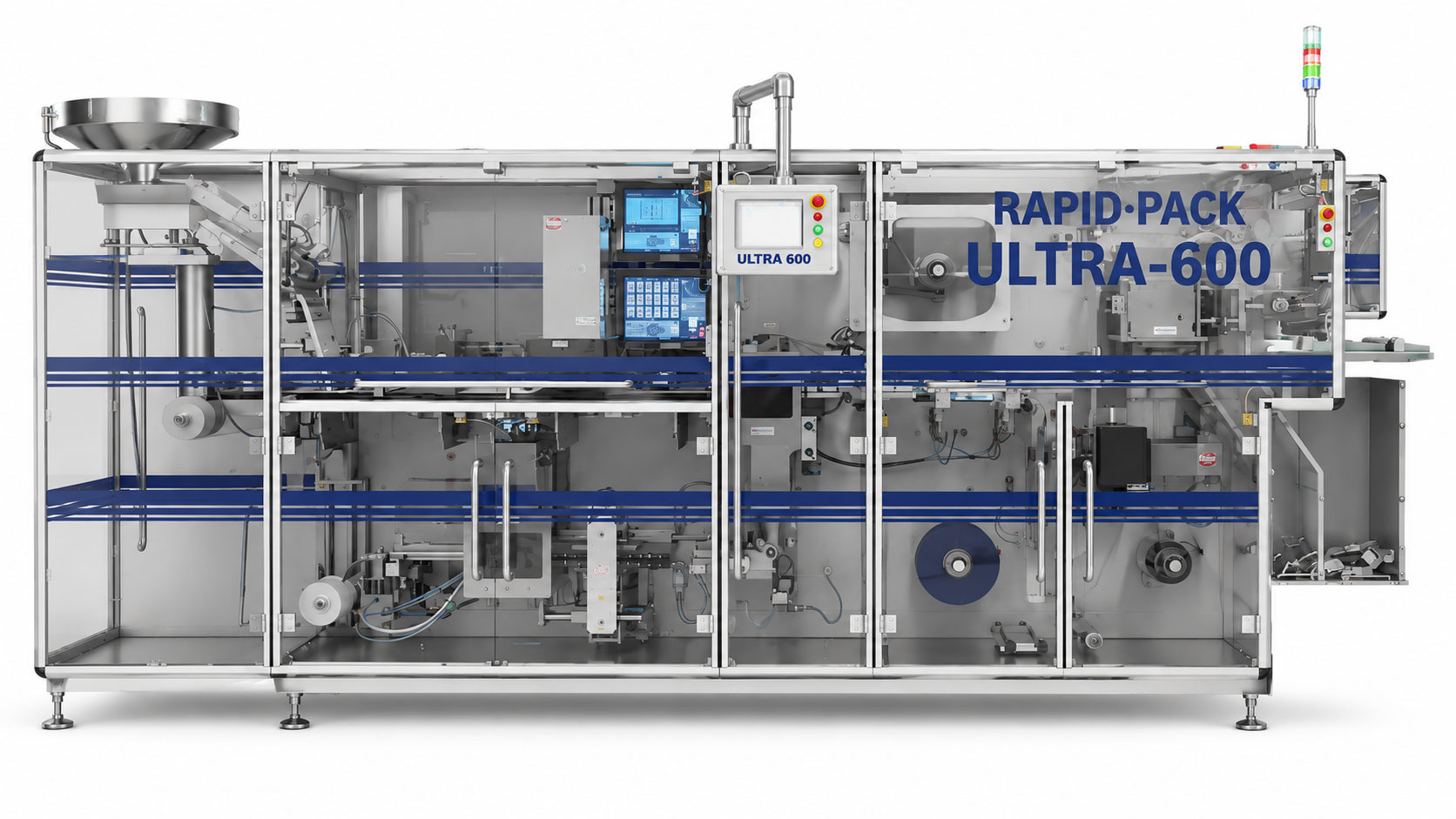

SPS Ultra 600 is a high-speed ALU ALU & ALU PVC Blister Packing Machine. With the application of the latest technology and best manufacturing practices, Ultra 600 has become one of the reliable machines of Rapid Pack Engineering BLR. The production Line is suitable for high-speed Alu PVC packing of medicines, especially capsules, tablets, and sugar-coated tablets. It is equipped with an auto-vision system and a rejection device.

Features*

  • Flat forming & Flat Sealing Alu Alu / Alu PVC machine
  • High speed machine with 200 to 300 pack punches/min
  • All parametrical changes can be done through the HMI with multiple level of password protection
  • Servo motors incorporated help in intelligent control and high speed operation
  • Improved heating system for forming
  • Improvised feeding system for high speed operation
  • Specially designed forming station for front loading and quick tool change over.
  • Special splicing device for base material for cutting and rejoining
  • Splice detection for base and lidding foil with tablet locking
  • Tool less product change over can be done within minutes
  • Specially designed quick clamping for base and lidding materials
  • Fully guarded with electrical interlocking
  • cGMP standard
  • Automation Panel PC of size 15.6", HD, touch screen, Ip65
  • GPRS enabled Router for online software support and notification Feature (SMS)

Specifications#

Technical

Maximum punching speed
: 240 punches/min (product specific)
Maximum forming speed
: 40 to 70 cycles/min (product specific)
Maximum forming area
: 234x180 mm
Maximum base foil width
: 234 mm
Maximum lidding foil width
: 230 mm
Maximum forming depth
: 15 mm

Utilities

Connected Load
: 30 KW
Average power consumption
: 15 KW (Approx.)
Cooling water consumption
: 200-250 Ltr/hr
Compressed air
: 26 CFM
Net weight
: 3200 Kg (Approx.)

Machine Dimensions

Machine Length
: 4700 mm
Machine Width
: 1200 mm
Machine Height
: 2350 mm

Flooring Dimensions

Length
: 5680 mm + 2%
Width
: 3635 mm + 2%
Height
: 3650 mm + 2%

Packaging Material Specification*

Base Foil

PVC opaque/ transparent(thermo formable), non toxic PVC with PVDC/ Tri laminate & Aluminum (cold formable), PET(optional), Poly-proplyne(optional)

Lidding Foil

110 Aluminum (hard) tempered with heat-sealable coating or Glassine Paper with heat sealable coating.

Description*

Introducing the ULTRA-600 Machine Model, a high-end flat forming and flat sealing Alu Alu / Alu PVC machine that takes your packaging efficiency to new heights. With its cutting-edge features and intelligent control, this machine is designed to streamline your production process and deliver exceptional results.

Experience unparalleled speed with the ULTRA-600, capable of performing 200 to 300 pack punches per minute. Say goodbye to time-consuming manual adjustments. This machine allows for seamless parametrical changes through the user-friendly HMI interface, featuring multiple levels of password protection to ensure data security.

Equipped with servo motors, the ULTRA-600 ensures precise control and operates at lightning-fast speeds. The improved heating system guarantees optimal forming, while the advanced feeding system enables smooth and efficient high-speed operation. With a specially designed forming station, you can achieve quick tool changeover and front loading for enhanced productivity.

Forget about the hassles of cutting and rejoining base materials. The ULTRA-600 boasts a special splicing device that simplifies the process, along with splice detection for base and lidding foil, ensuring secure tablet locking. Plus, toolless product changeover can be completed within minutes, thanks to its user-friendly design and quick clamping system for base and lidding materials.

Safety and compliance are paramount. The ULTRA-600 is fully guarded with electrical interlocking, adhering to cGMP standards. Stay connected and receive online software support and notifications with the GPRS-enabled Router, allowing for seamless updates and real-time alerts via SMS.

The ULTRA-600 also features an automation Panel PC with a 15.6" HD touch screen, providing a clear and intuitive interface for effortless control. Its IP65 rating ensures durability and protection against dust and water.
