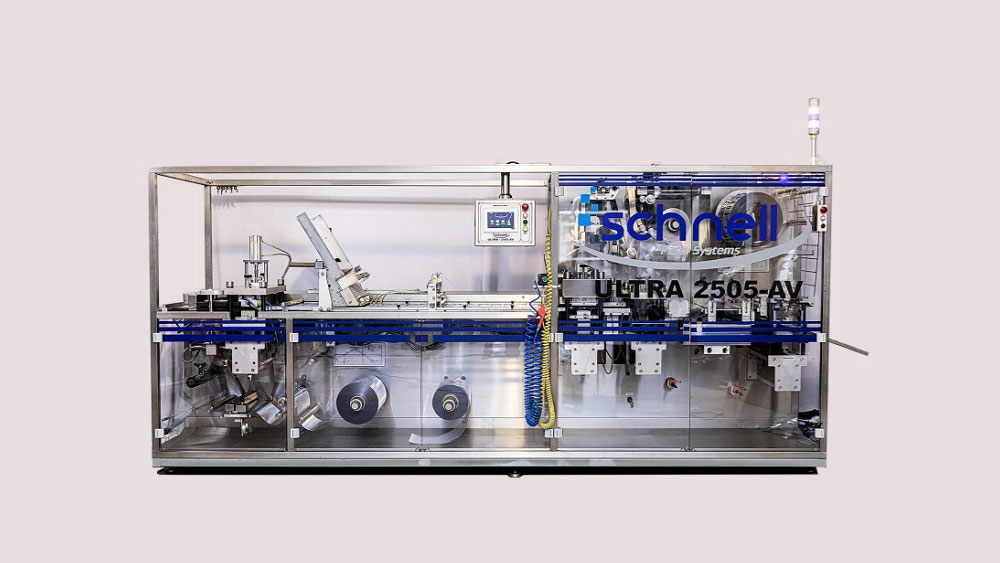

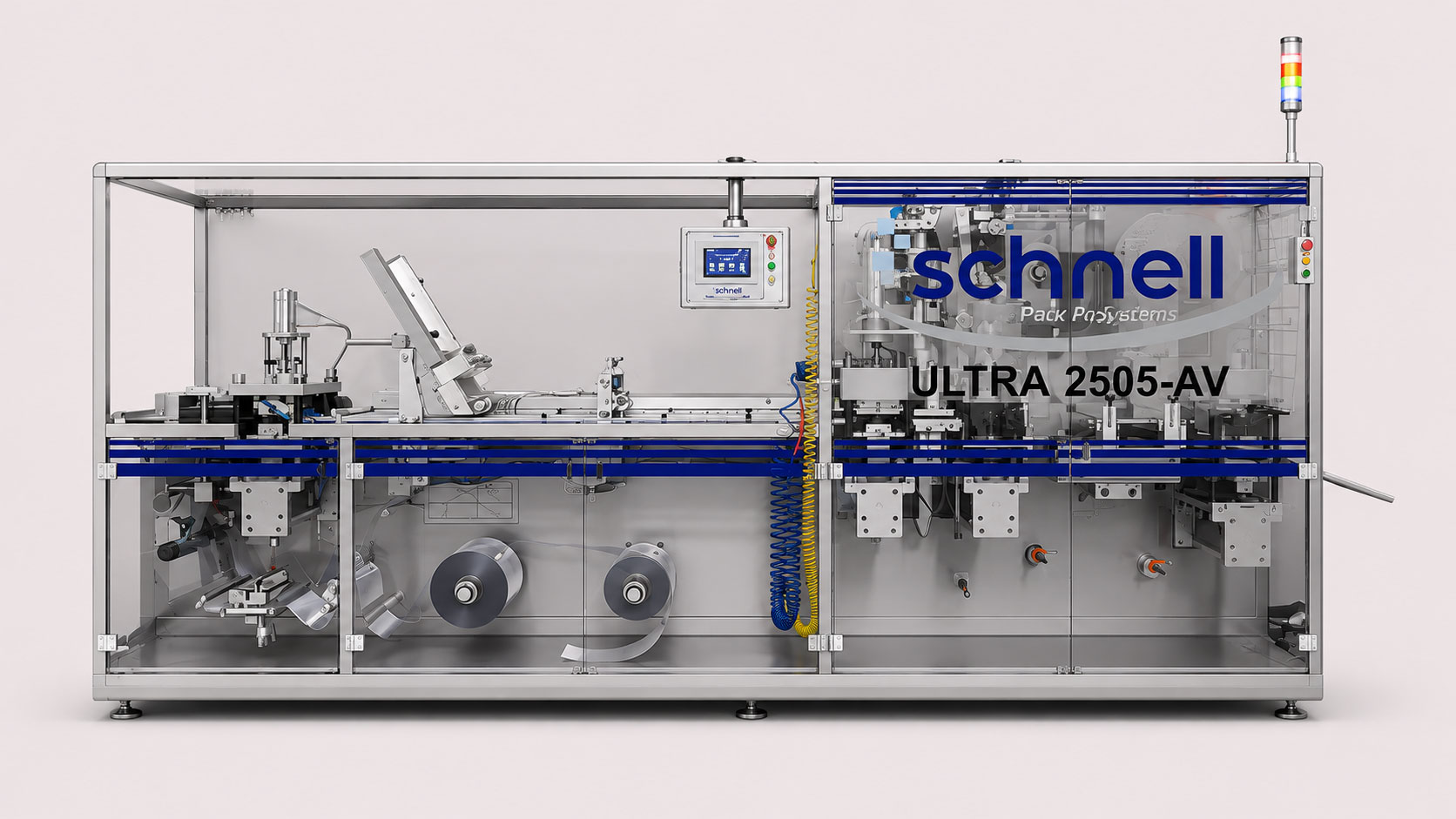

SPS ULTRA 2505 AV

SPS ULTRA 2505 AV

Ultra 2505 handles the pharmaceutical packaging of ampoules, syringes, vials, or bottles in blister packs. The compact packaging machine meets all the essential requirements of the pharmaceutical market for the secondary packaging of parenteral products. As a fully automated packaging system, the 2505 model offers a convincing performance based on reliable, gentle product handling and Flexible, cost-efficient packaging.

Features*

  • Ampoule Feeder Tray Type Feeding System.
  • Very careful handling avoids damage to the parenteral products (minimum drop heights in the feeder).
  • Servo-driven stations controlled by intelligent high-speed PLC.
  • Integrated with advanced B&R PLC with Enhanced Features.
  • High level of efficiency thanks to seamless integration into a fully automated production environment.
  • Multi punching with Rotary indexing and multiple tracks, Ideal for quick and frequent change-overs.
  • High-speed Perforation, Embossing, Punching, and Pack Pick Up.
  • Easy to clean due to cGMP compliant balcony design.
  • Compatible with 21 CFR part 11 features.
  • Using remote maintenance, the machine can be monitored, configured, and serviced via standardized communication media (modem, Intranet, or Internet).

Specifications#

Technical

Maximum punching speed
: 30 punches/min (product specific)
Maximum forming speed
: 30 cycles/min (product specific)
Maximum forming area
: 340x140 mm
Maximum base foil width
: 340 mm
Maximum lidding foil width
: 340 mm
Maximum forming depth
: 30 mm

Utilities

Connected Load
: 15 KW
Average power consumption
: 8 KW (Approx.)
Cooling water consumption
: 200-250 Ltr/hr
Compressed air
: 26 CFM
Net weight
: 2500 Kg (Approx.)

Machine Dimensions

Machine Length
: 4250 mm
Machine Width
: 1200 mm
Machine Height
: 1850 mm

Flooring Dimensions

Length
: 6250 mm + 2%
Width
: 3500 mm + 2%
Height
: 2200 mm + 2%

Packaging Material Specification*

Base Foil

PVC opaque/ transparent(thermo formable), non toxic PVC with PVDC/ Tri laminate

Lidding Foil

110 Aluminum (hard) tempered with heat-sealable coating or Glassine Paper with heat sealable coating.

Description*

Introducing the ULTRA-2505 AV Ampoule Feeder Tray Type Feeding System, the ultimate solution for efficient and damage-free handling of parenteral products. With our state-of-the-art machine, you can expect nothing but the best when it comes to automated production environments.

Experience a new level of precision and care with our servo-driven stations, expertly controlled by an intelligent high-speed PLC. The seamless integration of the ULTRA-2505 AV into your production environment guarantees a remarkable boost in efficiency. Say goodbye to time-consuming change-overs and welcome quick and frequent transitions with our multi-punching feature, enabled by Rotary indexing and multiple tracks.

Thanks to its high-speed perforation, embossing, punching, and pack pick up capabilities, this advanced system ensures unparalleled productivity. And that's not all! The ULTRA-2505 AV boasts a sleek and cGMP compliant balcony design, making it exceptionally easy to clean and maintain.

We understand the importance of compliance in the pharmaceutical industry, which is why our machine is fully compatible with 21 CFR part 11 features. This ensures that your operations meet the necessary regulations and standards.

Gone are the days of traditional maintenance routines. Our remote maintenance functionality allows you to monitor, configure, and service the machine through standardized communication media such as modems, intranet, or the internet. Stay connected and in control, no matter where you are.

Take your production capabilities to unprecedented heights with the ULTRA-2505 AV Ampoule Feeder Tray Type Feeding System. Embrace efficiency, precision, and ease of use today.
