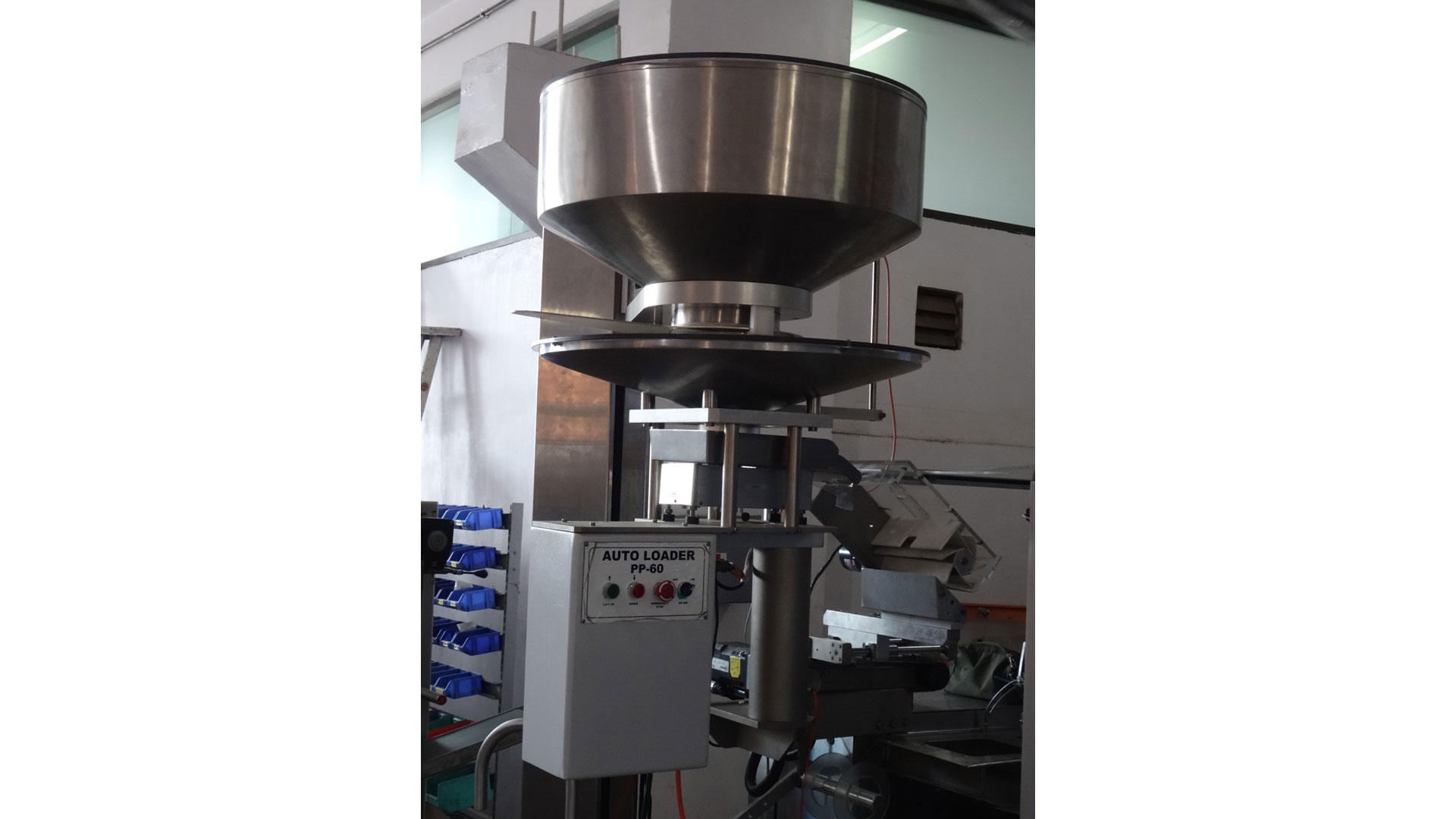

The Auto loader PP60 is specially designed to facilitate charging of product into the Blister machine hopper to ensure continuous uninterrupted running of blister machine.
Features*
The loader is esthetically designed taking care of 'c GMP' requirement and all the contact parts are made of Pharma Grade material SS316/ Polycarbonate. The loader consist of a product transfer SS hopper ( 800 mm dia & 470 mm ht) with holding capacity of 125 to 140 Kg which can travel vertically and laterally for the purpose.
The vertical movement of the hopper is supported by three phase brake motor with chain drive and is controlled by sensors whenever the hopper is outside the blister machine. This is enabled / disabled by locating pin.
The lateral movement of the hopper is manually controlled.
The product transfer hopper is provided with a shutter operated manually to discharge the product into the machine hopper.
The product transfer hopper is provided with Polycarbonate lid and view panel for sensing the product level.
The product transfer hopper will be seated on the small hopper mounted a linear vibrator of the blister machine and the small hopper is provided with a disc to distribute the product into the hopper whenever the shutter of the product transfer hopper is opened.
The whole assembly is mounted on a frame of size 1300mm x720mm resting on the floor supported by leveling pads. The chain and other supports are claded with SS 304.
The product is loaded into the transfer hopper at a level of 950mm from floor manually and the hopper is lifted to a height of 1940mm and rested on the machine hopper
The shutter of the product transfer hopper is opened to discharge the product into machine hopper
The product transfer hopper is provided with a product level sensor and when the level of the product reaches below the level audio alarm is activated to refill the transfer hopper
The machine is provided with a panel box covering ON OFF switch, push button for lifting & lowering of hopper and an emergency push button.
The machine is free from crevices and easily cleanable for compliance
