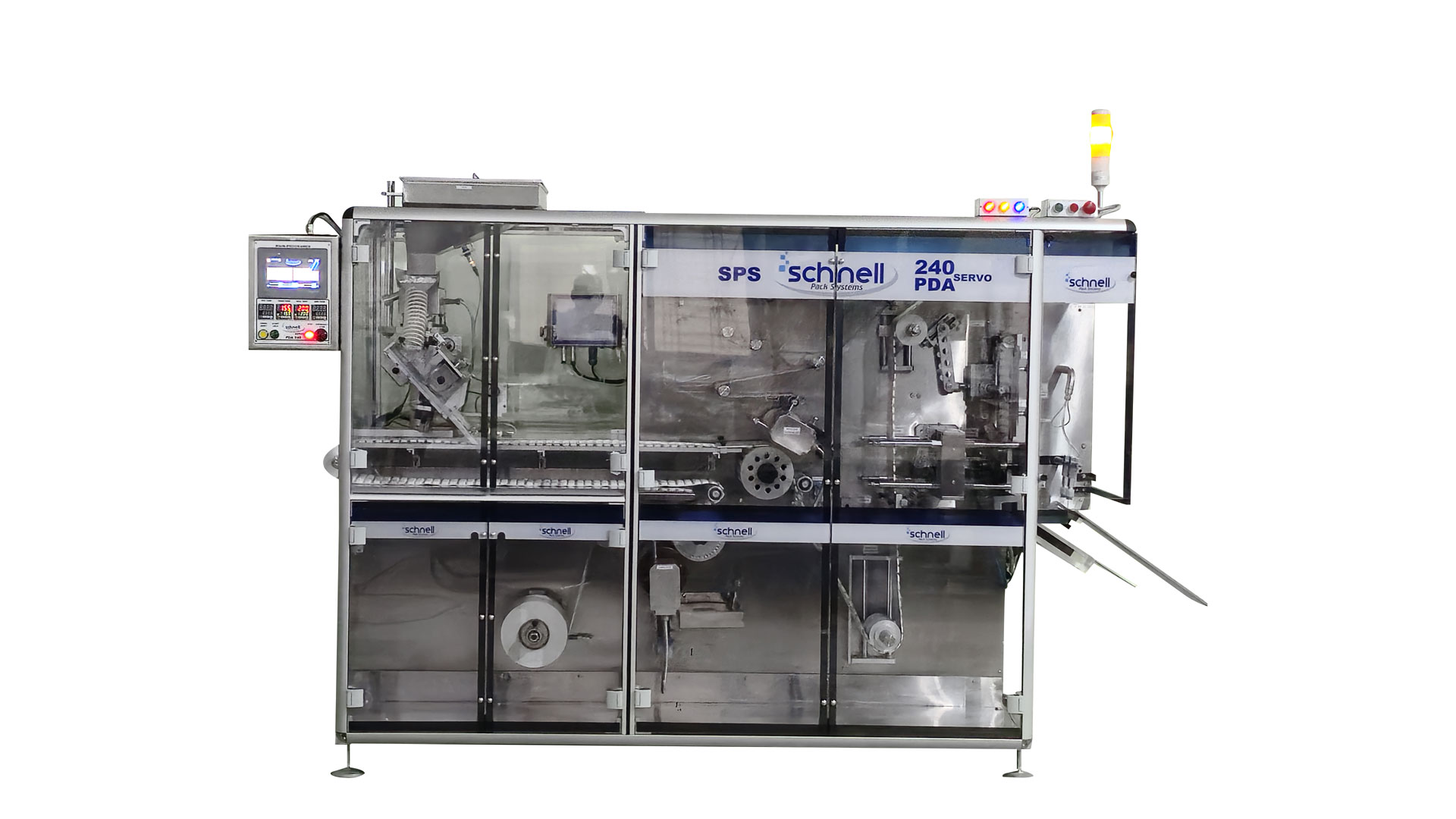

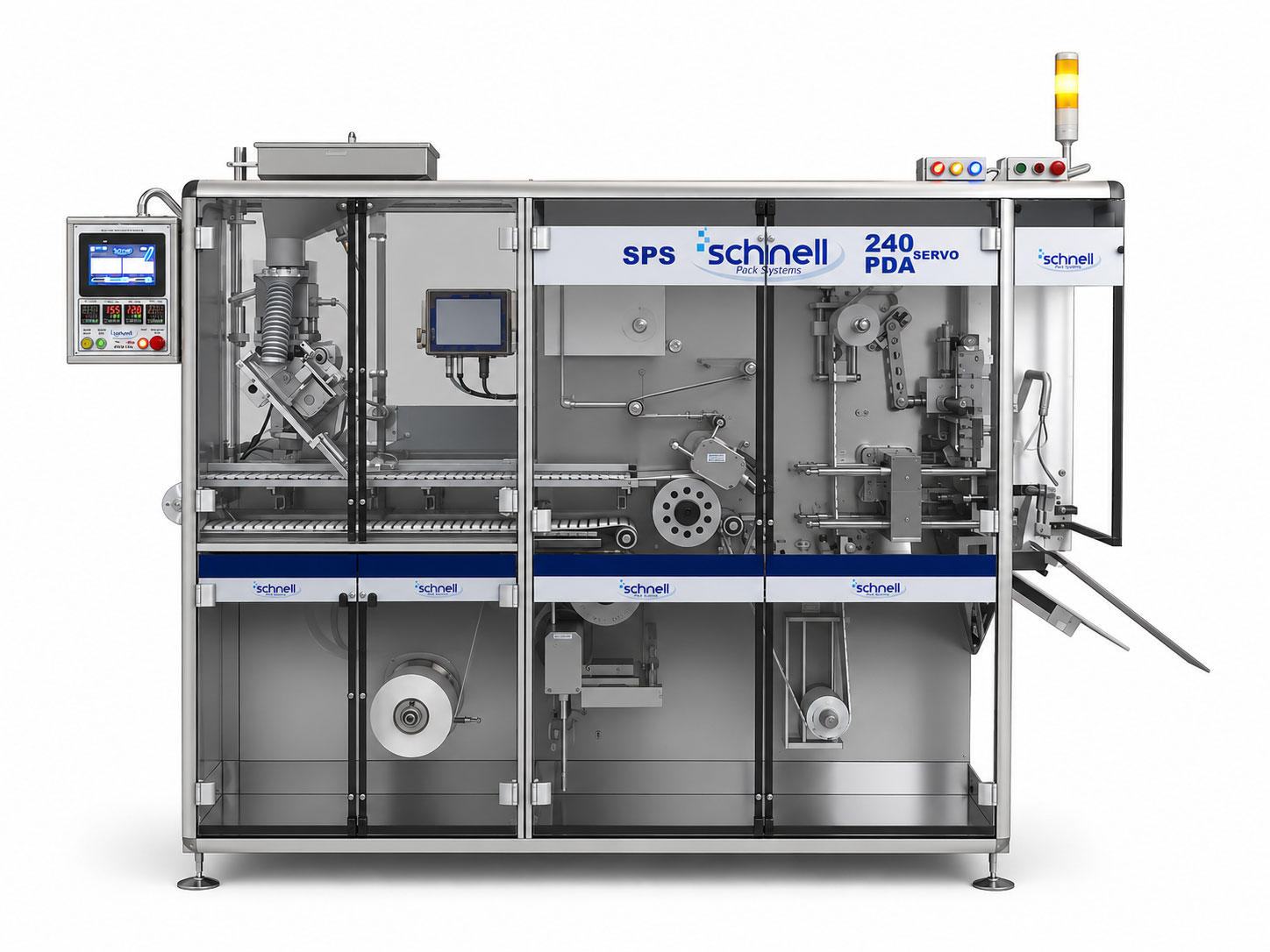

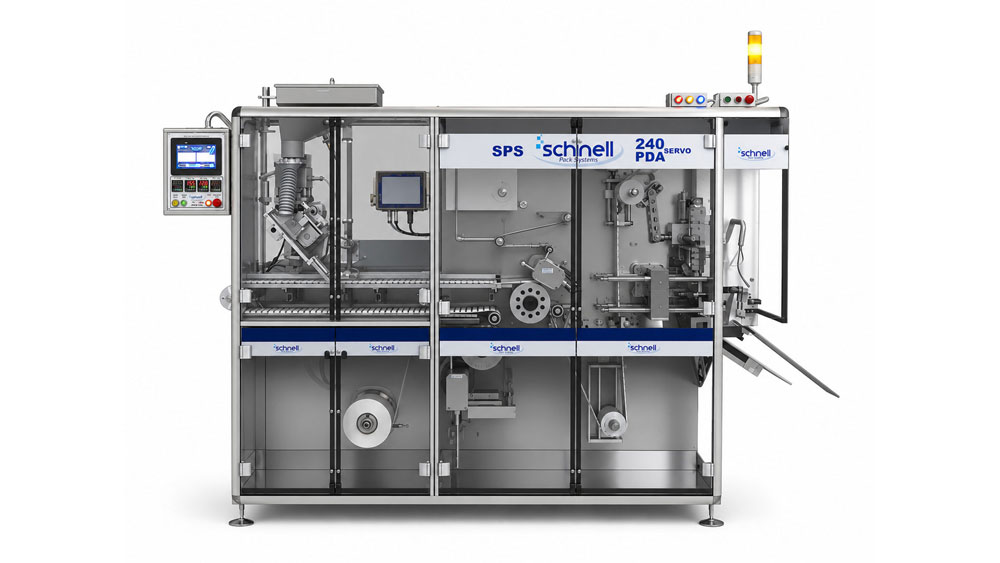

SPS 240 PDA SERVO

SPS 240 PDA SERVO

Introducing the cutting-edge 240 PDA Blister Packing Machine! Designed to revolutionize your packaging process, this state-of-the-art equipment combines continuous rotary forming and sealing, along with servo assistance and PLC control, to deliver unparalleled efficiency and precision.

Features*

  • 240 PDA Blister Packing machine is continuous (Rotary forming /Rotary sealing) Servo assisted with PLC controlled
  • Polycarbonate Front Safe Guarding With electrical Interlocking
  • The machine operation is intelligently controlled by Servo Drive eliminating the conventional change gear
  • The existing change parts of Proven 240 Blister machine is interchangeable and increase in output by 20%.
  • Servo assisted Printing unit with Universal BCP drum for all layouts for precise printing, only the stereos will change and no BCP change gear. This will reduce the change parts cost by 10% for each change parts.
  • The Machine is constructed on a rigid MS Frame with stainless steel body and SS cladded from front - SS 304
  • Provision for online autocartonator connectivity with precise pick and place and auto rejection mechanism for defective blisters
  • Provision for accommodating VISION INSPECTION SYSTEM (Before & After sealing) : Machine shall detect blisters with missing tablets, chipped tablets, discoloured tablets
  • Feeding System for feeding channel with powder collection system to avoid powder accumulation in the cavity.
  • Machine base is designed to avoid product accumulation as a part of GMP compliance
  • All moving parts segregated with ample space for ease of maintenance Access for cleaning the space below the machine
  • All reduction gears self-lubricated (maintenance of reduction gear is not required since it comes with permanent lubrication)
  • Forming & sealing functions are independent with dedicated rollers
  • Edge to Edge PRC is possible.
  • B&R PLC with HMI and controller

Specifications#

Technical

Maximum punching speed
: 150 punches/min (product specific)
Maximum forming web speed
: 4500mm web/min (product specific)
Maximum Punch Size
: 198x100 mm (226x110mm optional)
Maximum base foil width
: 208 mm
Maximum lidding foil width
: 204 mm
Maximum forming depth
: 10 mm

Utilities

Connected Load
: 10 KW
Average power consumption
: 7.5 KW (Approx.)
Cooling water consumption
: 150 Ltr/hr
Compressed air
: 10 CFM
Net weight
: 1100 Kg (Approx.)

Machine Dimensions

Machine Length
: 2200 mm
Machine Width
: 990 mm
Machine Height
: 1750 mm

Flooring Dimensions

Length
: 4500 mm + 2%
Width
: 3200 mm + 2%
Height
: 2400 mm + 2%

Packaging Material Specification*

Base Foil

PVC opaque/ transparent(thermo formable), non toxic PVC with PVDC

Lidding Foil

110 Aluminum (hard) tempered with heat-sealable coating or Glassine Paper with heat sealable coating.

Description*

Introducing the 240 PDA Blister Packing machine, a game-changer in the world of packaging technology. This cutting-edge machine brings together innovation and efficiency to revolutionize your packaging process. Say goodbye to tedious manual operations and welcome the future of blister packing with open arms.

One of the standout features of this machine is its continuous operation, thanks to the advanced rotary forming and sealing mechanism. With the assistance of servo technology and precise PLC control, every step of the process is flawlessly executed, ensuring optimal results.

Your safety is our top priority, which is why we've equipped this machine with a polycarbonate front safe guarding system. The electrical interlocking mechanism provides an additional layer of protection, giving you peace of mind while operating the machine.

Gone are the days of cumbersome change gears. Our intelligent servo drive eliminates the need for traditional change gear systems, making the operation smoother and more efficient. The existing change parts of the Proven 240 Blister machine are interchangeable, resulting in a remarkable 20% increase in output.

We understand the importance of precision printing in the packaging industry. That's why we've incorporated a servo-assisted printing unit with a universal BCP drum. With this innovative feature, you can achieve precise printing for all layouts without the need for BCP change gear. Save 10% on change parts cost for each variation with ease.

Built to last, the machine features a rigid MS frame with a stainless steel body, ensuring durability and longevity. The front is SS 304 cladded, adding a touch of elegance to its robust design.

Stay ahead of the competition by taking advantage of the machine's advanced connectivity options. Seamlessly connect it to an online autocartonator for precise pick and place functionality. The auto rejection mechanism swiftly identifies defective blisters, maintaining the highest quality standards.

For enhanced quality control, the machine is provisioned for a VISION INSPECTION SYSTEM. Detect blisters with missing tablets, chipped tablets, or discolored tablets before and after sealing, guaranteeing flawless packaging every time.

We've thought of everything, including a feeding system with a powder collection mechanism to prevent powder accumulation in the cavity. The machine base is intelligently designed to avoid product accumulation, ensuring compliance with GMP standards.

Maintenance and cleaning are a breeze with the machine's user-friendly design. All moving parts are segregated and offer ample space for ease of maintenance. Cleaning the space below the machine is quick and hassle-free.

Forget the hassle of lubricating reduction gears. Our machine comes with self-lubricated gears, eliminating the need for regular maintenance.

Experience the freedom of independent forming and sealing functions with dedicated rollers. Achieve edge-to-edge PRC effortlessly, giving your packaging a sleek and professional finish.

Equipped with a B&R PLC, HMI, and controller, this machine combines cutting-edge technology with user-friendly interfaces, ensuring a seamless and intuitive operation.
